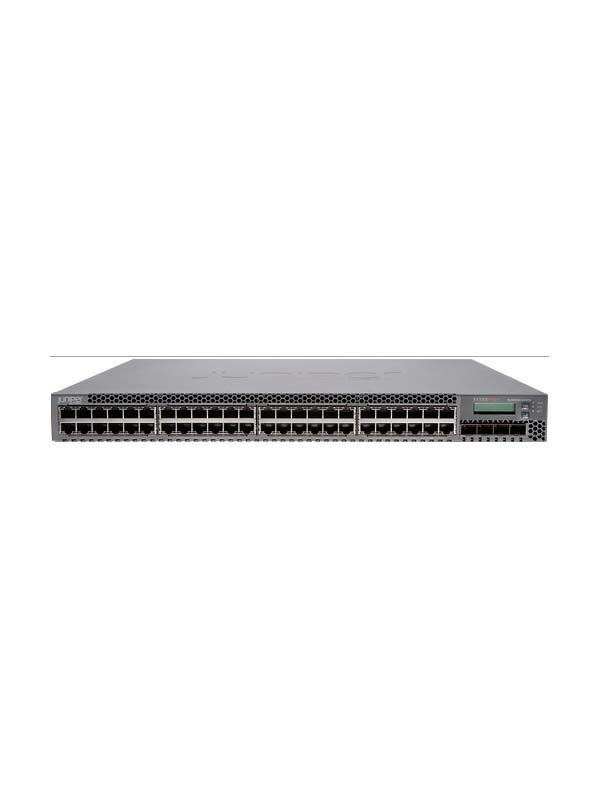

Juniper EX2300 and EX2300-C Ethernet Switches deliver a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. Featuring a small, 1U footprint, the EX2300 and EX2300-C are ideal for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks. The EX2300-C features a fanless, silent operation design, making it ideal for open office installations. The EX2300 offers up to 48 10/100/1000BASE-T ports in a single platform, while the EX2300-C offers 12 10/100/1000BASE-T ports. Both models are available with or without IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering attached network devices. Optional front panel 10GbE uplink ports support connections to higher-layer devices. Both models support Juniper’s unique Virtual Chassis technology, enabling up to four of the switches to be interconnected and managed as a single device. Both models can also act as satellite devices in a Junos Fusion Enterprise deployment, which combines large numbers of access switches into a logical management platform.

About Amarta Store
We are the bigest online IT Equipment distributor in Asia. Headquarter in Jakarta - Indonesia, we are providing our customer with worldwide shipping coverage. So, wherever your location is, we are ready to support your needs with the best price.

Switch
Security	MAC limiting, Allowed MAC addresses—configurable per port, Sticky MAC (persistent MAC address learning), Dynamic ARP inspection (DAI), Proxy ARP, Static ARP support, DHCP snooping, 802.1X port-based, 802.1X multiple supplicants
VLAN	4093 VLAN with 4094 VLAN IDs
Manageable	Yes
Layer 2 switching	Yes, Multiple VLAN Registration Protocol (MVRP), Per-VLAN Spanning Tree Plus (PVST+), RVI (Routed VLAN Interface), Link Layer Discovery Protocol (LLDP), LDP-MED with VoIP integration, Bridge Port Extension, Spanning Tree Protocol, CoS Prioritization, VLAN Tagging, VLAN Stacking, Multiple Spanning Tree Protocol (MSTP)
Layer 3 Switching	Yes, Static routing, RIP v1/v2 & OSPF v1/v2 (with 4 active interfaces)
Number of Port	48x 10/100/1000BASE-T PoE+ + 4x 1/10GbE SFP/SFP+
Stackable	Yes, using Virtual Chassis technology
Redundant Power Supply	No
Rackmount	Yes
Warranty	Juniper Indonesia Enhanced Limited Lifetime Warranty
