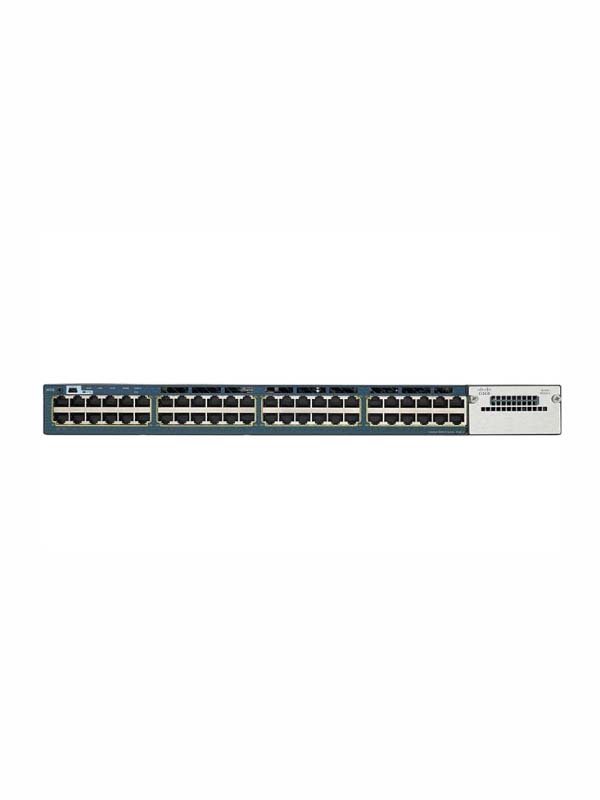

The Cisco Catalyst 3560-X Series Switches are an enterprise-class lines of stackable and standalone switches, respectively. These switches provide high availability, scalability, security, energy efficiency, and ease of operation with innovative features such as IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power supplies, and Media Access Control Security (MACsec) features. The Cisco Catalyst 3560-X enhance productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience. The LAN Base feature set includes comprehensive Layer 2 features, with up-to 255 VLANs. The IP Base feature set provides baseline enterprise services in addition to all LAN Base features, with 1K VLANs. IP Base also includes the support for routed access, StackPower (available only on the Catalyst 3750-X), MACsec, and the new Cisco Service Module. The IP Services feature set provides full enterprise services that includes advanced Layer 3 features such as Enhanced Interior Gateway Routing Protocol (EIGRP), Open Shortest Path First (OSPF), Border Gateway Protocol (BGP), Protocol Independent Multicast (PIM), and IPv6 routing such as OSPFv3 and EIGRPv6. All software feature sets support advanced security, QoS, and management features.

About Amarta Store
We are the bigest online IT Equipment distributor in Asia. Headquarter in Jakarta - Indonesia, we are providing our customer with worldwide shipping coverage. So, wherever your location is, we are ready to support your needs with the best price.

Switch
Security	Cisco Advanced Security Features; Port security, DHCP snooping, Dynamic ARP inspection, IP source guard, RADIUS change of authorization, IGMP filtering, Cisco security VLAN ACLs, Port-based ACLs for Layer 2 interfaces, etc
VLAN	Up to 255 VLANs and 4094 VLAN ID
Manageable	Yes
Layer 2 switching	Yes, IEEE 802.1s/w Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP), Per-VLAN Rapid Spanning Tree (PVRST+), Switch-port autorecovery (Errdisable)
Layer 3 Switching	Optional with IP Based and IP Service upgrade
Number of Port	48x 10/100/1000 PoE Ethernet Ports
Stackable	N/A
Redundant Power Supply	Dual redundant, modular power supplies and fans
Rackmount	Yes
Warranty	Cisco Indonesia Limited Lifetime Warranty
