HARGA : CALL (klik disini untuk informasi harga lebih detil)
PRODUCT CODE : 18101

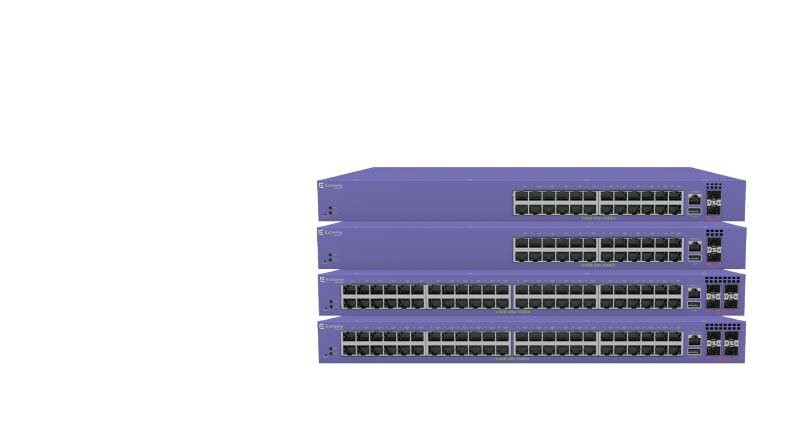

As the edge component of Extreme's Extended Edge Switching solution, the Extreme V400 Switch provides access switch capabilities, while being controlled by a remote EXOS aggregation switch. This allows the V400 to seamlessly extend all the feature-rich services of the EXOS aggregation switch, including Layer 3 routing and policy, to the network edge. All Extreme V400 Switch models support standards-based control and data plane technology based on the IEEE 802.lBR specification, allowing for centralized management and intelligent service delivery from a central EXOS aggregation switch. The EXOS aggregation switch also acts as a single point of V400 configuration and control for reduced complexity and operational costs.
Extreme V400 Switch Series units can be quickly installed in a plug and play manner. Once the unit is physically connected and powered up, the V400 automatically finds the central EXOS aggregation switch and downloads its configuration. There's no need to connect a local console to set-up the V400 unit or its ports. The Extreme V400 Switch family consists of both 24 and 48-port Gigabit Ethernet and 24 and 48-port Gigabit PoE+ models. All models include either 2 or 4 SFP+ ports on the faceplate of each base unit, which can be provisioned as upstream and/or cascade ports.
Cascaded Extreme V400 Switch can also be configured in a ring design for additional resiliency. In a ring, the first and last V400 devices in a cascade can be connected to the EXOS aggregation switch. If any V400 device in the ring should fail, traffic can be re-routed in the other direction across the ring back to the EXOS aggregation switch. Extreme V400 Switch support both IEEE 802.3at PoE+ and IEEE 802.3af PoE to enable connection of standards compliant PoE devices today. The V400 offers up to 740W PoE budget on 48-port models and 380W on 24-port models.
