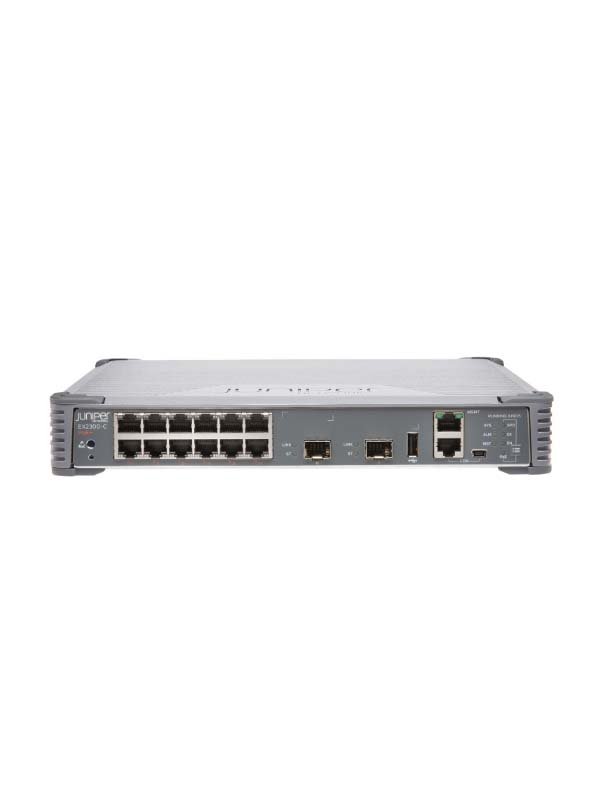

The Juniper Networks EX2300-C Ethernet Switch offers an economical, entry-level solution in a compact, fanless form factor for access layer deployments in branches, retail, and workgroup environments. To simplify network operations, the EX2300-C is hardware-ready to act as a satellite device to support a Juniper Networks Junos Fusion Enterprise deployment, which can combine several wiring closets into one logical management platform. For smaller deployments, the EX2300 also supports Juniper Networks Virtual Chassis technology, allowing up to four interconnected switches to be managed as a single logical device, delivering a scalable, pay-as-you-grow solution for expanding networks. The fixed-configuration EX2300-C line of Ethernet switches delivers complete Layer 2 and basic Layer 3 switching capabilities to satisfy the low-density branch and low-density wiring closet connectivity requirements of today’s high-performance business needs. The EX2300-C models extend that reach into workgroup environments that reside outside the wiring closet, including branch offices, retail access applications, education, hospitality, and other locations where the switch is deployed in open areas inside a building. Two versions are available. The EX2300-C-12T offers 12 front panel 10/100/1000BASE-T access ports and two SFP+ 10GbE uplink ports. The EX2300-C-12P offers 12 front panel 10/100/1000BASE-T IEEE 802.3af/IEEE 802.3at (PoE/PoE+) access ports, which can be used for powering networked devices such as telephones, video cameras, multiple radio IEEE 802.11ac wireless LAN (WLAN) access points, and videophones in converged network environments. In addition, the EX2300-C-12P has two SFP+ 10GbE uplink ports. The uplink ports can be used to connect to higher-layer devices such as aggregation switches or routers. The uplink ports can also be configured as Virtual Chassis interfaces and connected via standard 10GbE interfaces. A fixed internal power supply ensures operational simplicity.

About Amarta Store
We are the bigest online IT Equipment distributor in Asia. Headquarter in Jakarta - Indonesia, we are providing our customer with worldwide shipping coverage. So, wherever your location is, we are ready to support your needs with the best price.

Switch
Security	MAC limiting, Allowed MAC addresses—configurable per port, Sticky MAC (persistent MAC address learning), Dynamic ARP inspection (DAI), Proxy ARP, Static ARP support, DHCP snooping, 802.1X port-based, 802.1X multiple supplicants
VLAN	4093 VLAN with 4094 VLAN IDs
Manageable	Yes
Layer 2 switching	Yes, Multiple VLAN Registration Protocol (MVRP), Per-VLAN Spanning Tree Plus (PVST+), RVI (Routed VLAN Interface), Link Layer Discovery Protocol (LLDP), LDP-MED with VoIP integration, Bridge Port Extension, Spanning Tree Protocol, CoS Prioritization, VLAN Tagging, VLAN Stacking, Multiple Spanning Tree Protocol (MSTP)
Layer 3 Switching	Yes, Static routing, RIP v1/v2 & OSPF v1/v2
Number of Port	12x 10/100/1000BASE-T PoE+ + 2x 1/10GbE SFP/SFP+
Stackable	Yes, using Virtual Chassis technology
Redundant Power Supply	No
Rackmount	Yes
Warranty	Juniper Indonesia Enhanced Limited Lifetime Warranty
