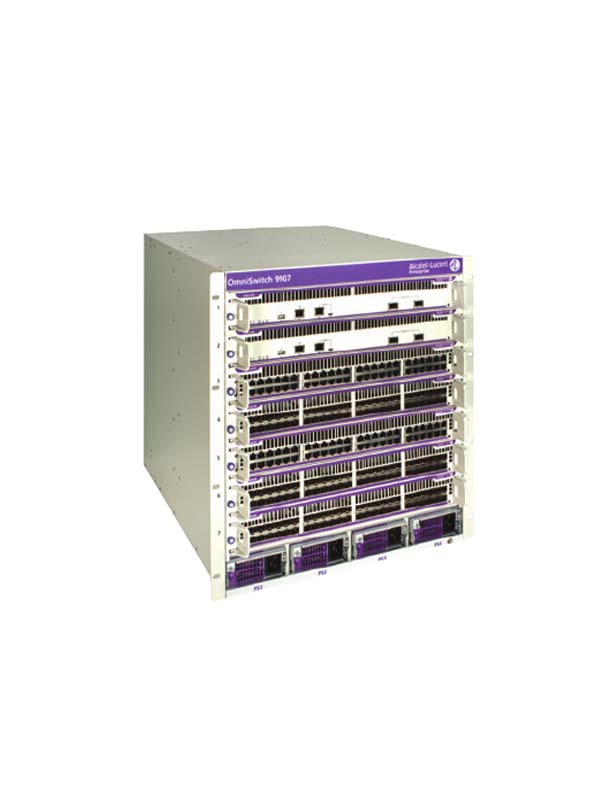

The Alcatel-Lucent OmniSwitch 9900 series Modular LAN chassis platform is a high-capacity, high-performance modular Ethernet LAN switch that is field-proven in enterprise, cloud and data center environments. As the OmniSwitch 9900 series runs on the Alcatel-Lucent Operating System (AOS), a state-of-the-art programmable operating system designed for Software-Defined Networking (SDN), it delivers uninterrupted network uptime with non-stop Layer-2 and Layer-3 forwarding. The OmniSwitch 9900 is a high density, multi Terabit modular platform. The platform can linearly scale switching capacity with virtual chassis technology providing tens of Terabit of aggregate switching capacity. In particular its modular design provides investment protection allowing for scaling out with future inline upgrades offering high density 1G/2.5G/5G/10G/25G/40G/50G/100G interfaces.



The OmniSwitch 9900 series is ideally suited for enterprise core, aggregation and edge environments. Its resilient platform architecture providing control plane and data plane redundancy together with unparalleled scalability helps meet demanding resiliency and throughput requirements for evolving enterprises of all sizes. The OmniSwitch 9900 series offers a broad range of modules supporting 1 GigE, 10 GigE and 40 GigE ports in an 11-RU chassis form factor, and it offers highest 1 GigE/10GigE port density in its class. The OmniSwitch 9900 offers the highest density of Power over Ethernet (PoE) in its class, scaling up to 10800 W of inline PoE power. The gigabit PoE line card supports 8 ports of HPoE (75 W) and 40 ports of 802.3at PoE (30 W). All PoE-enabled ports are IEEE 802.3af/at compliant. The OmniSwitch 9900 leverages an energy-efficient model with leading low power consumption, making it an efficient and versatile switch.



The Alcatel-Lucent Enterprise Intelligent Fabric technology is also enabled on the OmniSwitch 9900 Modular LAN chassis. The technology brings true network flexibility ensuring business agility. It not only delivers a resilient, high-capacity infrastructure, but it also delivers automated deployment and self-healing network capabilities to reduce overhead in IT operations. The technology platform is built upon standard IEEE protocols and key innovations such as Shortest Path Bridging (802.1aq/SPB-M) for bridged and routed services, Multiple VLAN Registration Protocol (MVRP), dynamic Virtual Network Profiles (vNP), 802.3ad/802.1AX (LACP) and AutoFabric for automatic protocol and topology discovery.

About Amarta Store
We are the bigest online IT Equipment distributor in Asia. Headquarter in Jakarta - Indonesia, we are providing our customer with worldwide shipping coverage. So, wherever your location is, we are ready to support your needs with the best price.

Switch
Security	Application Fingerprinting using Ethernet management port (EMP) port, AOS Access Guardian, Auto-sensing IEEE 802.1X multi-client, multi-VLAN MAC-based authentication for non-802.1X hosts, Captive Portal, Host integrity check (HIC), Group mobility rules, etc
Manageable	Yes
Layer 2 switching	Yes, Ring Rapid Spanning Tree (RRSTP), IEEE 802.1s Multiple Spanning Tree Protocol: Encompasses IEEE 802.1D STP and IEEE 802.1w Rapid Spanning Tree Protocol, Per-VLAN spanning tree (PVST), IEEE 802.3ad Link Aggregation Control Protocol (LACP), Virtual Router Redundancy Protocol (VRRP), Metro Ethernet access
Layer 3 Switching	Static routing, Routing Information Protocol (RIP) v1 and v2, Open Shortest Path First (OSPF) v2, Intermediate System to Intermediate System (IS-IS), Border Gateway Protocol (BGP) v4, Generic Routing Encapsulation (GRE) and IP/IP tunneling, Virtual Router Redundancy Protocol (VRRPv2), DHCP relay (including generic UDP relay), Address Resolution Protocol (ARP), Policy-based routing and server load balancing, DHCPv4 server
Rackmount	Yes, 11U
Chasis LAN Switch	Yes, 11 (Front accessible 7 slots + Rear accessible 4 slots) modular slot
Max Power Supply in 1 Chasis	4
Max Network Interface in 1 Chasis	6 (Slot 2 is universal; accommodates CMM or NI, limited to 160 Gb/s aggregate switching capacity)
Max Controller in 1 Chasis	2
Warranty	1 Year Warranty from Alcatel Lucent Indonesia
