PRODUCT CODE : SYS-5019C-M

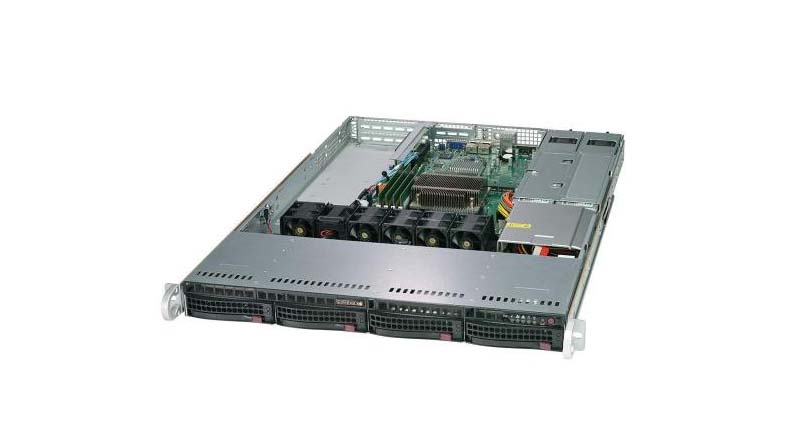

The Supermicro SuperServer SYS-5019C-M itself is a 1U chassis that many will look at and immediately recognize as Supermicro. There are four 3.5″ hot-swap bays, status LEDs, and both power and reset buttons. We would have liked to have seen USB 3.0 front panel ports added for cold aisle drives, but Supermicro designed these to be serviced from the hot aisle so this design choice makes sense. Moving to the rear of the Supermicro SuperServer SYS-5019C-M, we can see another fairly standard setup. There are redundant 1U hot-swappable power supplies. One can find in-data center management ports such as a VGA port and 2x USB 2 plus 2x USB 3 ports on the rear panel for KVM cart access.
For networking, Supermicro SuperServer SYS-5019C-M has a total of three ports. The lone port atop the USB 2.0 stack is the dedicated out-of-band management port. For standard data networking, there are two Intel i210 network controller based ports. These are upgrades over lower-cost Realtek NICs, and are well supported in every major server OS today. Inside the Supermicro SuperServer SYS-5019C-M chassis, we find a Supermicro X11SCM-F motherboard. This mATX motherboard is from a line that has been popular for the company and around for generations.
Supermicro SuperServer SYS-5019C-M has 1U fan partition blows cool air over the CPU heatsink and memory. Supermicro SuperServer SYS-5019C-M itself supports various CPU options although we expect most will utilize Intel Xeon E-2100 or even a Core i3-8100 in this type of server. Flanking the CPU socket are four DDR4 slots. Currently, the server supports up to 64GB in 16GBx4 ECC UDIMMs. As the next-generation 32GB ECC UDIMMs roll out in 2019, these servers will be able to support up to 128GB of RAM.
